MSM® PTCA Balloon



Technical Sheet

Design Rapid Exchange
Material Proprietary polyamide compound
Balloon compliance Semi-compliant
Marker Embedded Platinum/Iridium
Distal shaft (outer diameter) 2.8F (0.93 mm)
Proximal shaft (outer diameter) 1.9F (0.63 mm)
Usable catheter length 138 cm
Lowest crossing profile 0.025″ (0.63mm)
Nominal inflation pressure 8atm
Minimum guiding catheter compatibility 5Fr / 0.056″
Guidewire compatible 0.014″ (0.36mm)

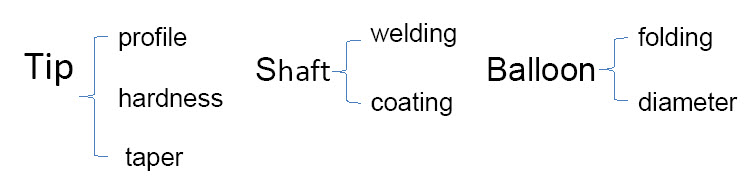

 Crossability

is one of the most important factor of PTCA Balloon catheter nowadays.





Tip Diameter Comparison




Tip Hardness Comparison



Excellent welding technique guarantees the smooth transmission

enhanced deliverability and pushability



Hydrophilic coating

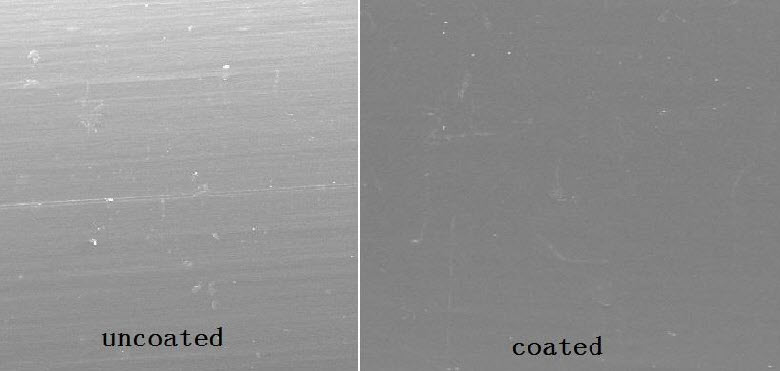

pictures were taken by electron microscope



Stability of hydrophilic coating improved safety

Hydrophilic coating: In the environment of simulated human body fluid, the hydrophilic coating on the distal shaft remain stable after up to 150 times of stirring, shows superior stability of the hydrophilic coating.



Three-directional memory folding

Reduce the size of the balloon and ensure the excellent withdrawability



Technical Details Catheter



Compliance Data



Order Information
